Facebook Pixel Conversion API
Maximize Conversions with Facebook Conversion API and Server-Side Event Tracking
Client : DTC Food Supplement brand
Platform : Shopify
Traffic Source : Facebook & Instagram Ads
Project Goal –
Deploy a robust Facebook Conversion API (CAPI) setup to:
✅ Accurately track full funnel: ViewContent → Purchase
✅ Recover data lost to iOS, ad blockers, and privacy tools
✅ Improve event match quality for better ad delivery
✅ Get accurate ROAS data in Ads Manager
✅ Enable smarter audience targeting and dynamic retargeting campaigns
Project Details:
📘 Project Overview
The client—a fast-growing DTC eCommerce brand—was struggling with unreliable browser-only tracking, leading to weak optimization and limited remarketing.
We implemented Facebook Conversion API setup and Server-Side Event Tracking via GTM Server Container, integrating events like page_view, view_content, add_to_cart, initiate_checkout, and purchase. This enhanced attribution accuracy, enabled dynamic remarketing, and improved campaign performance.
🚦The Challenges —–
Prior to Conversion API implementation, the client faced :
⚠️ Low signal match rate and missing events in Meta Events Manager
⚠️ Pixel-only setup failing due to browser restrictions (iOS, ad blockers)
⚠️ Poor event match quality (low EMQ scores)
⚠️ No server-side validation or deduplication logic
⚠️ Poor optimization due to incomplete data
⚠️ No first-party domain setup for trusted data flow
⚠️ GTM container not optimized for Meta tracking
These problems lead to underreporting, lost conversion, and wasted ad spend.
🎯 Our Solution
We built a dual-layer tracking system using Facebook Pixel (browser) and CAPI (server) via GTM. Server events were sent using a GTM Server container hosted on Stape.io, enriched with dynamic parameters (value, currency, IDs), and deduplicated using event_id.
📊 Tracked Events via Facebook CAPI
| Event Name | Trigger Point | Tracking Method | Status |
|---|---|---|---|
page_view | All pages | Server (CAPI) | ✅ Active |
view_content | Product detail page | Server (CAPI) | ✅ Active |

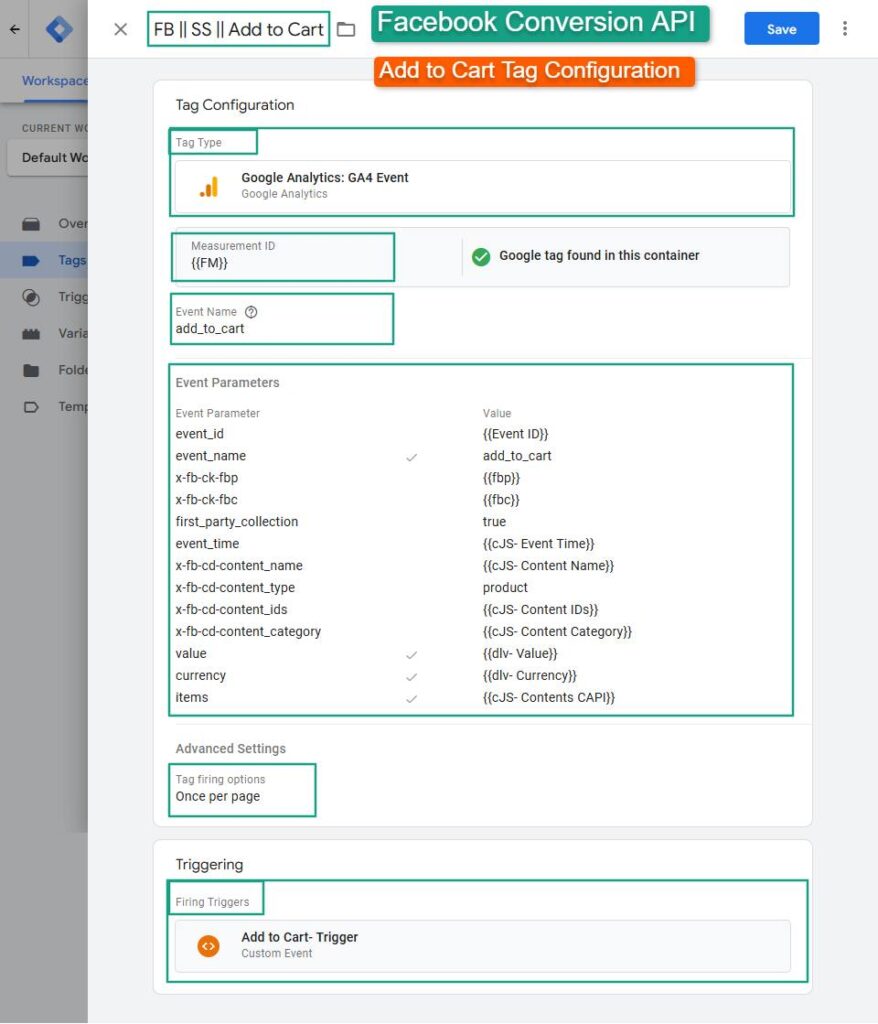

add_to_cart | Add to Cart interaction | Server (CAPI) | ✅ Active |
initiate_checkout | Checkout page load | Server (CAPI) | ✅ Active |
add_payment_info | Payment form interaction | Server (CAPI) | ✅ Active |
purchase | Thank You / Order Complete | Server (CAPI) | ✅ Active |

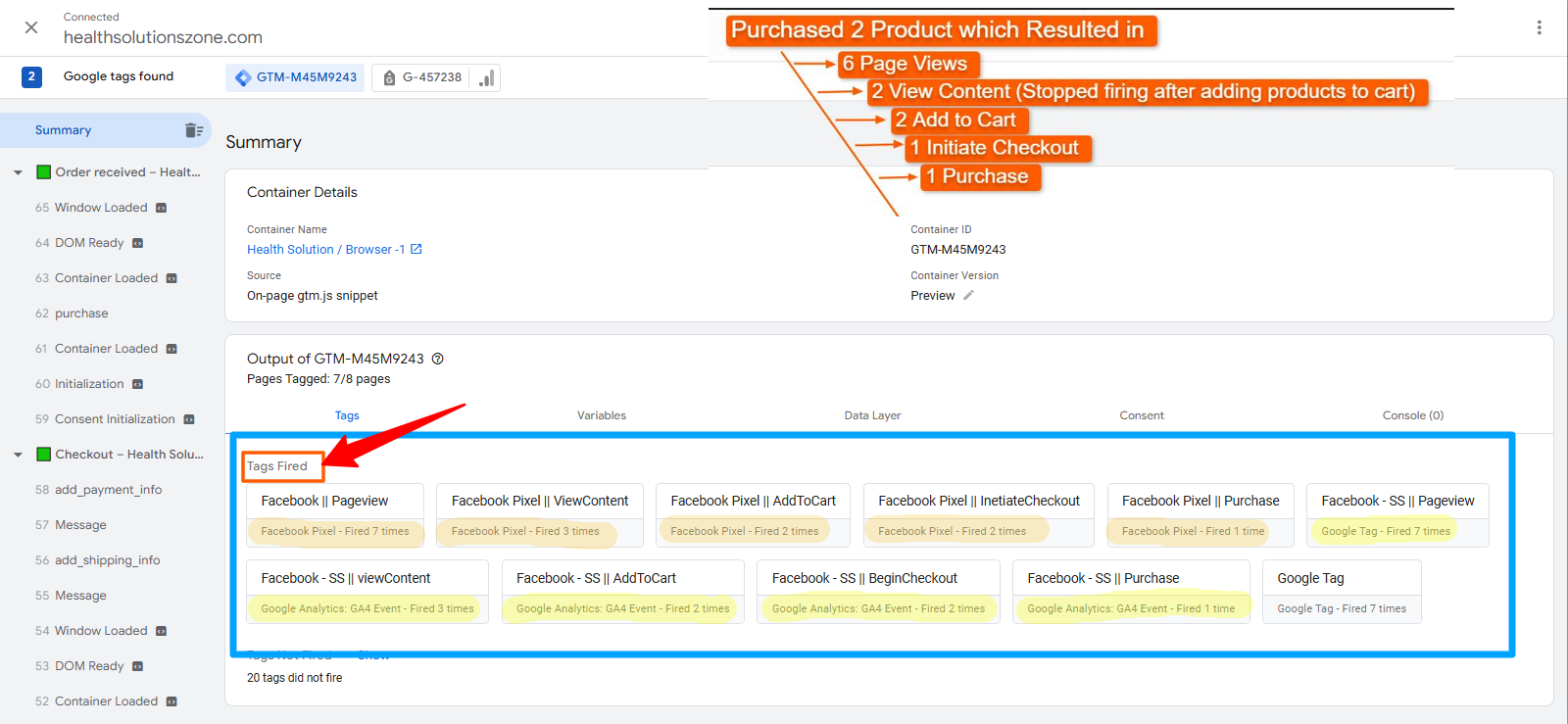

After giving a preview from the GTM Browser Server-side, we see that all tags have fired successfully.
Custom Domain Setup with Stape.io to enhance tracking accuracy and ensure compliance with privacy regulations.

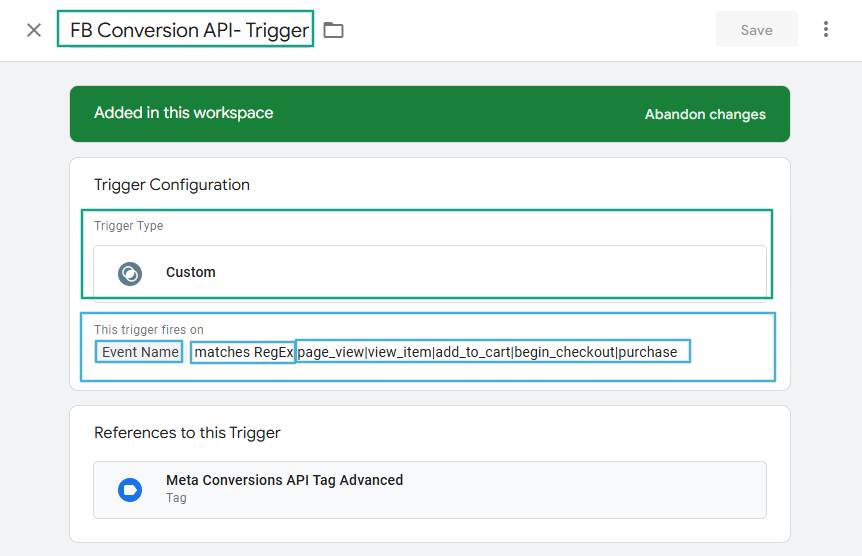

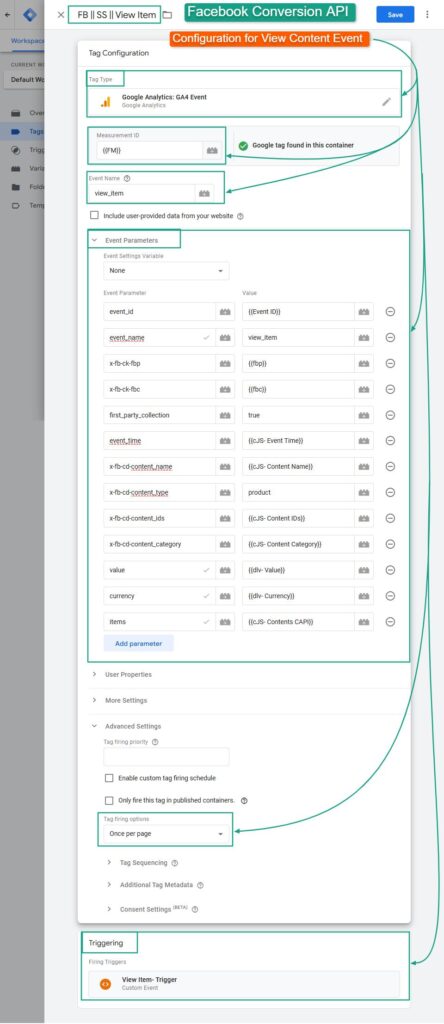

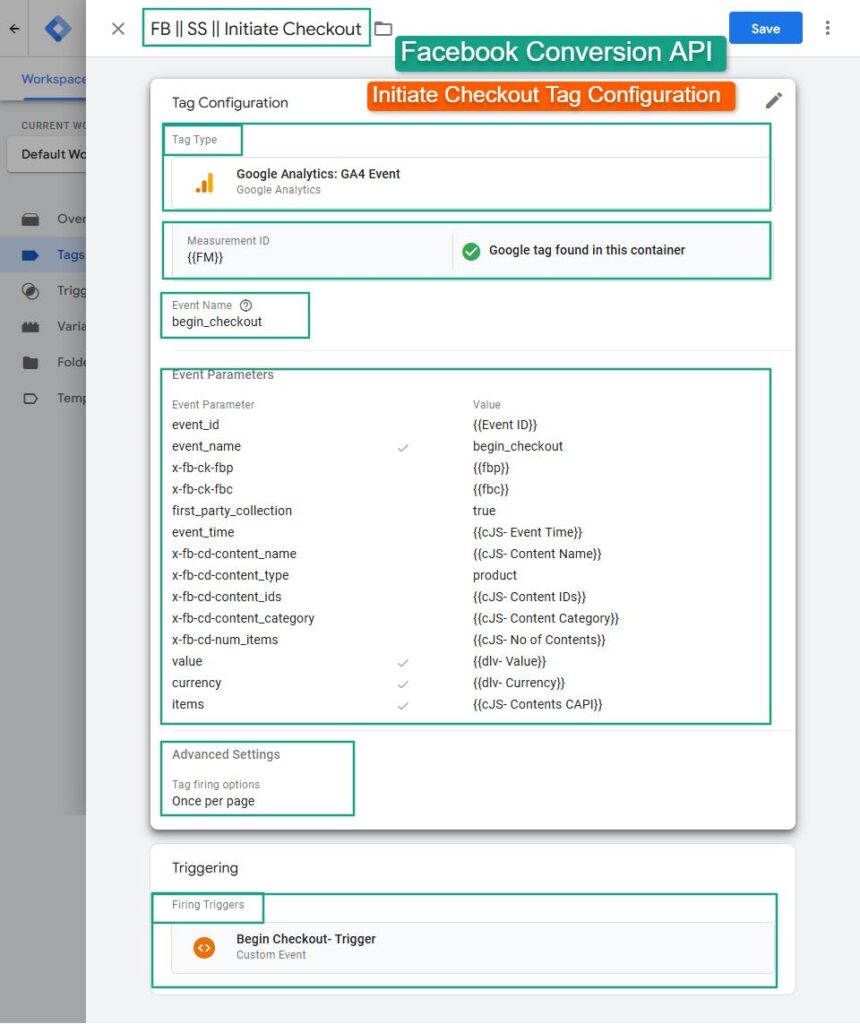

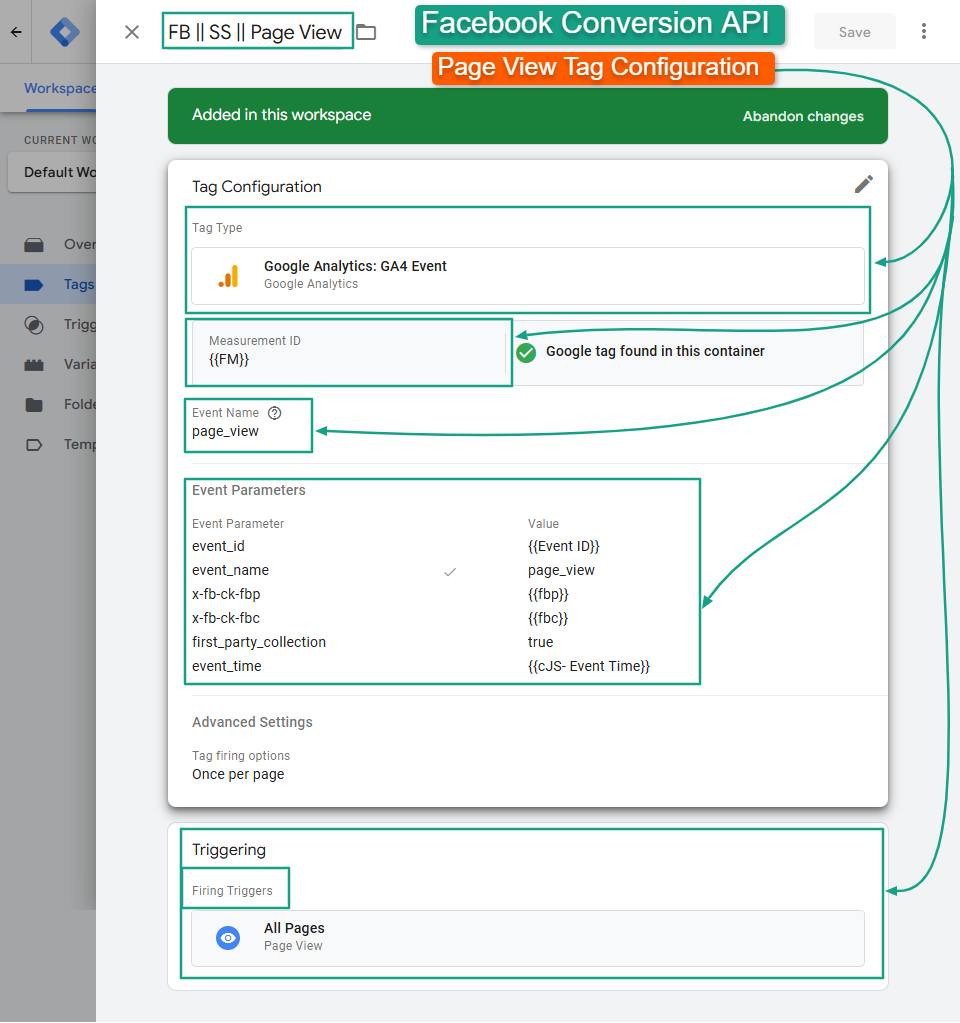

Here All Tags /Events successfully Configuration from GTM Browser-side . We have used GTM as a client here.

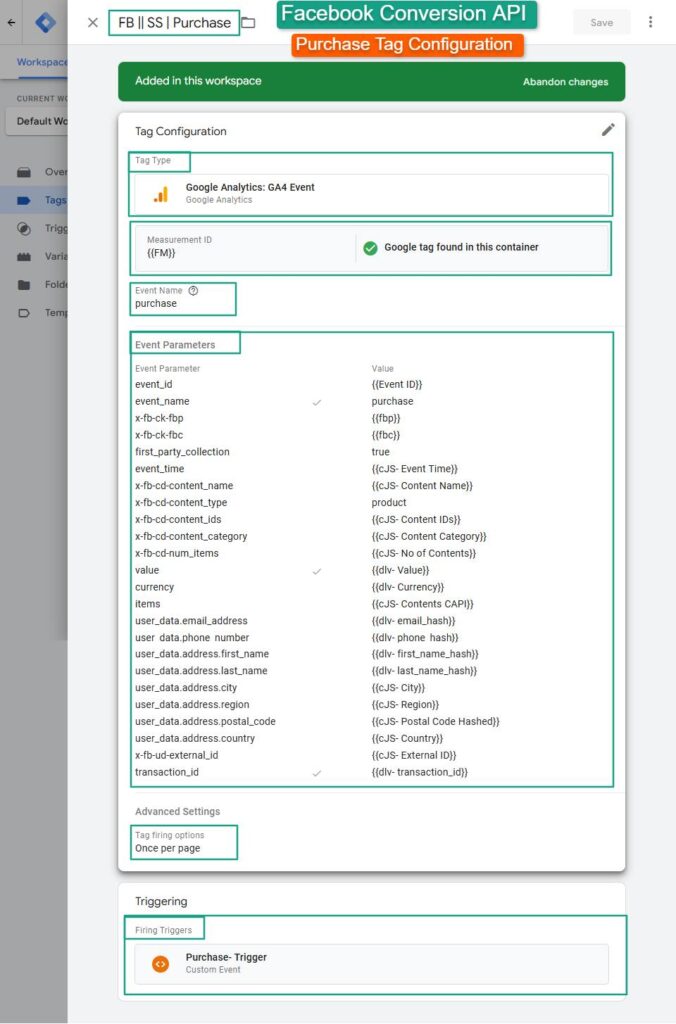

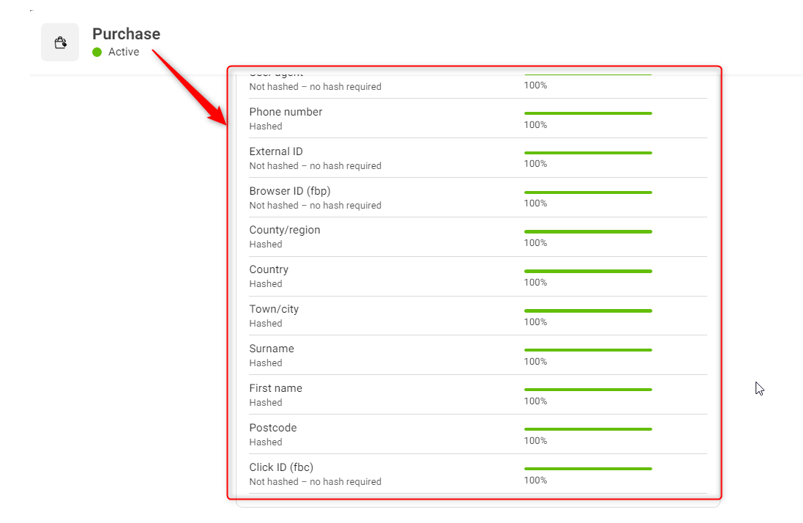

All essential user info Parameter in Purchase
Scope of Work
Deliverables Services
Component | Status |
|---|---|
| Facebook Pixel installation via GTM | ✅ Completed |
| Facebook Conversion API (CAPI) configuration | ✅ Implemented |
| Integration with Meta Events Manager | ✅ Validated |
| GTM server-side container optimization | ✅ Optimized |
| Hosting on Stape.io (server-side GTM) | ✅ Deployed |
| Tags, triggers & variables for all funnel events | ✅ Configured |
| Events setup: ViewContent → AddToCart → Checkout → Purchase | ✅ Tracked |
| Dynamic parameter enrichment (value, currency, IDs) | ✅ Mapped |
| Custom DataLayer setup for dynamic websites | ✅ Customized |
event_id setup for deduplication | ✅ Enabled |
external_id, email, phone for EMQ improvement | ✅ Encrypted |
| Meta privacy compliance and consent forwarding | ✅ Compliant |
📈 Results After Facebook CAPI Setup -
| Status | Before | After |
|---|---|---|
| 🚫 | Conversions lost from iOS & Safari users | ✅ 100% server-resilient conversion tracking |
| 🚫 | Underreported purchase & ROAS data | ✅ Accurate revenue attribution in Ads Manager |

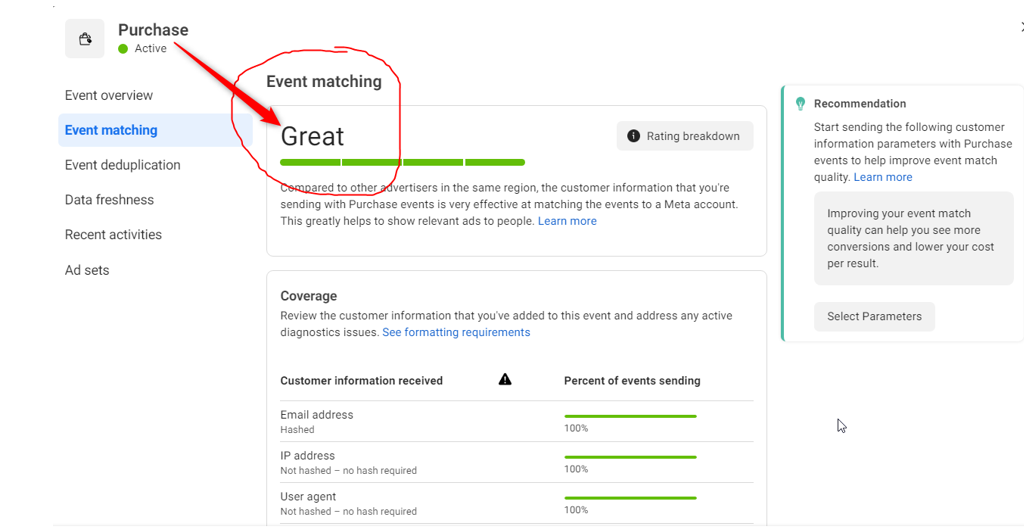

| 🚫 | Low Event Match Quality (EMQ) | ✅ 95–98% EMQ with event_id and hashed user data |
| 🚫 | Poor optimization due to incomplete data | ✅ Higher optimization efficiency, reduced CPA |
| 🚫 | Pixel blocked by browsers & ad blockers | ✅ Events delivered server-side, browser-independent |
| 🚫 | Limited data for retargeting audiences | ✅ Retargeting expanded with clean CAPI signals |
| 🚫 | Incomplete funnel visibility | ✅ Full-funnel tracking restored via server events |
| 🚫 | Delayed or missing event firing | ✅ Real-time delivery with improved reliability |
| 🚫 | No deduplication → duplicate conversions | ✅ Deduplication with event_id prevents overcounting |
| 🚫 | Hard to scale campaigns confidently | ✅ Clear, reliable data enables confident scaling & smart planning |
💡 Why This Setup is Essential
Due to iOS 14+ changes and tightening data privacy laws, relying only on browser-based tracking causes signal loss and optimization issues. With this Precision Tracking for Meta Ads advanced setup helps to:
📈 You recover lost conversions
📊 Boost Event Match Quality
🔐 Stay compliant and future-ready
🎯 Improve ROAS through better attribution
⚙️ Gain full control over event tracking and reporting
🔁 Better retargeting & optimization with server-confirmed events
🌐 Compatibility with dynamic product ads (DPA) and advanced audiences
🧰 Tools & Platforms I Used
Facebook Conversion API (CAPI)
Google Tag Manager (Web + Server)
Shopify CMS
Meta Events Manager
Stape.io Hosting
JavaScript & DataLayer scripting
